M12 1 To 2-6 Port Y-Type High Density Flex Waterproof Cable Assembly IP67

The Y-type 1-to-4 waterproof splitter flex cable assembly is designed for multi-branch power distribution – one main input cable splits into four independent output branches through an integrated injection molded housing. This flexible cable assembly design eliminates on-site junction box wiring, reducing connection points and improving waterproof reliability. Ideal for LED lighting systems, landscape projects, and outdoor sensor arrays.
Built with a parallel circuit structure, this flex cable assembly works well for outdoor LED street lights, wall washers, solar module wiring, garden lighting systems, and other low-voltage distribution projects where reliable branch connections are required. Housing dimensions and cable specifications are available in the drawing – please check before ordering.

Send Inquiry

Add To Inquiry

Dongguan Hejiaxin Technology Co., Ltd. is one of the leading manufacturers and suppliers of m12 1 to 2-6 port y-type high density flex waterproof cable assembly ip67 in China. Please feel free to wholesale durable products made in China here and get pricelist from our factory. All customized products are with high quality and competitive price.

Technical Specifications

Parameter	Specification
Voltage Rating	AC/DC 300V
Current Rating	≤10A
Times of plug	500
Max Cable OD	≤8.0mm
Circuit Structure	1-in 4-out Parallel
Contact Resistance	≤20mΩ
Insulation Resistance	100MΩ at DC500V
Voltage endurance at room temperature	1.0KV
Temperature Rating	-20℃~+70℃
Waterproof Level	IP65

Material Specifications

Parameter	Specification
wire Material	PVC, Tinned Copper Conductor
Jack Material	PVC
Pin Material	Tinned Copper
Sealing ring	Silicone Rubber

Product Engineering Drawing

Dimensional Drawing

From the CAD: Y-splitter housing 48.7mm overall length, inlet side 13.0mm width, outlet side 32.0mm max width, single branch outlet 11.0mm diameter. Cable entry strain relief 6.0mm length on each port.Current rating for the Y-splitter series: 2-core 10A/300V, 3-core 8A/300V, 4-core 6A/250V, 5-core 4A/125V. ISO 2768-m. PDF/DWG available.

And yes – housing length, branch quantity, cable entry sizes, conductor arrangements can all be modified to match your cable specs and layout needs. Just tell us what you're working with.

Product detail

Y-type 1 to 4 splitter wiring harness

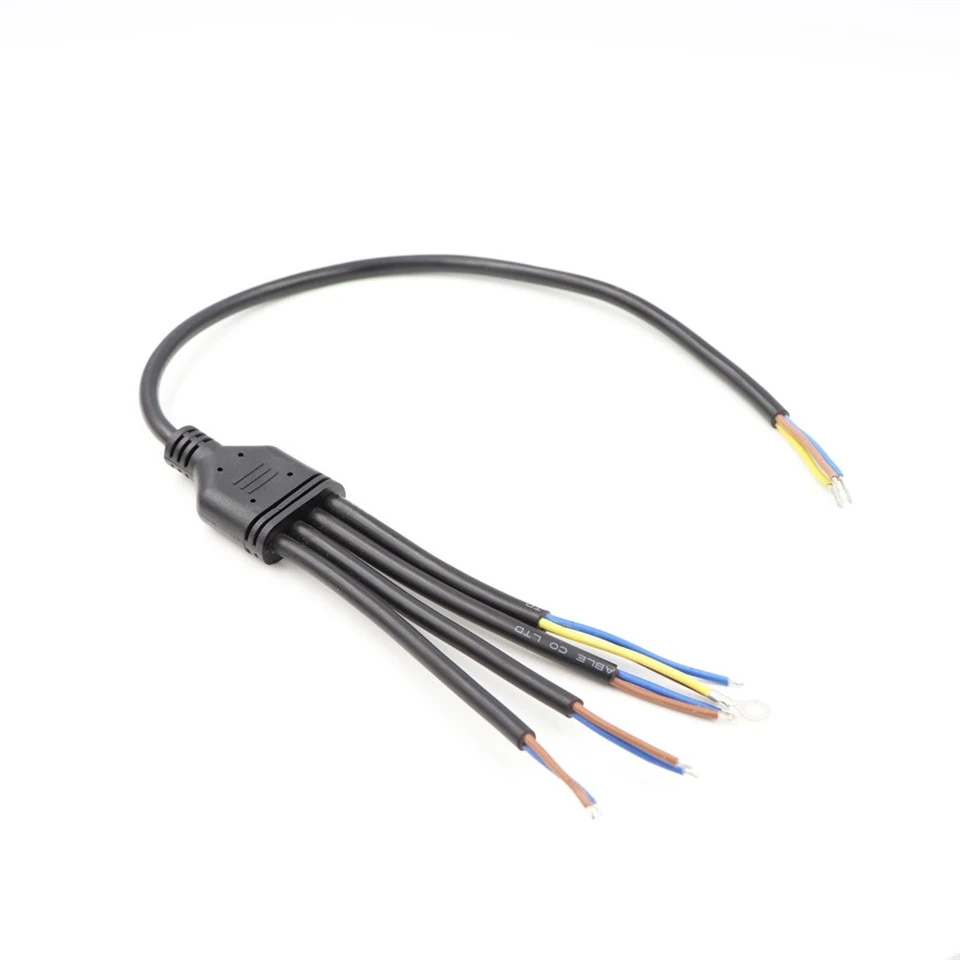

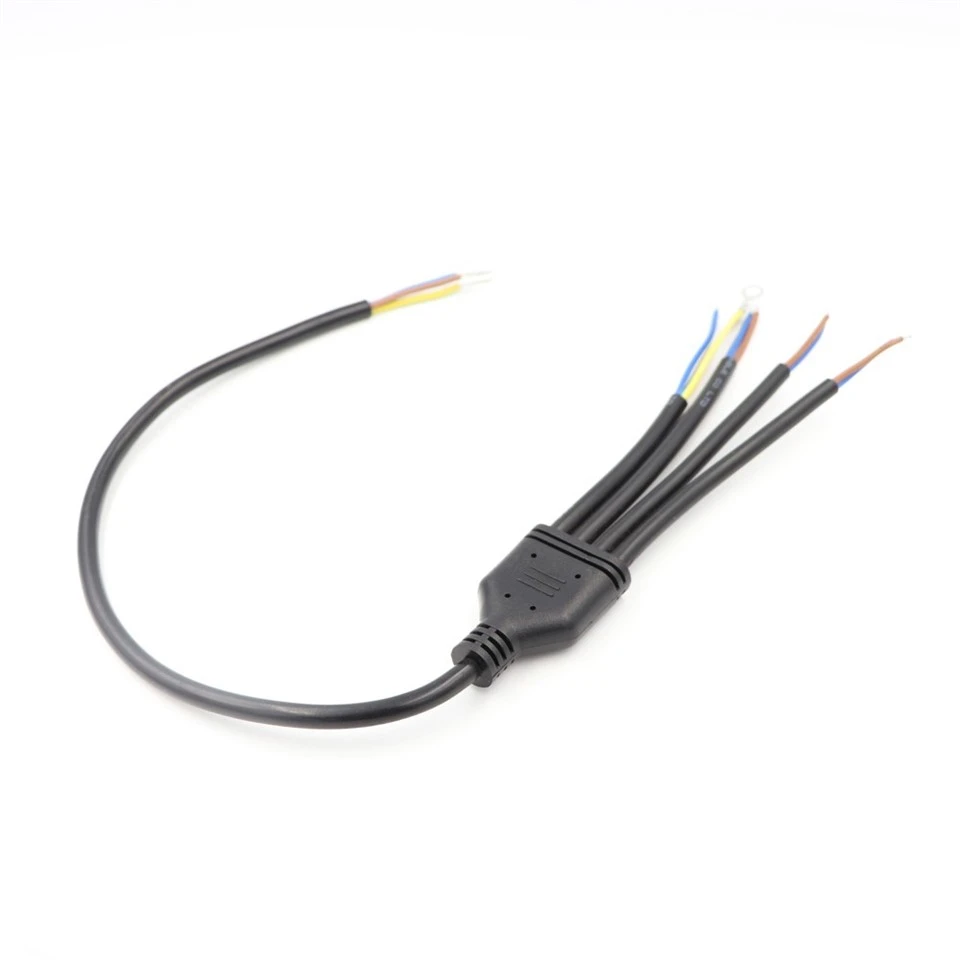

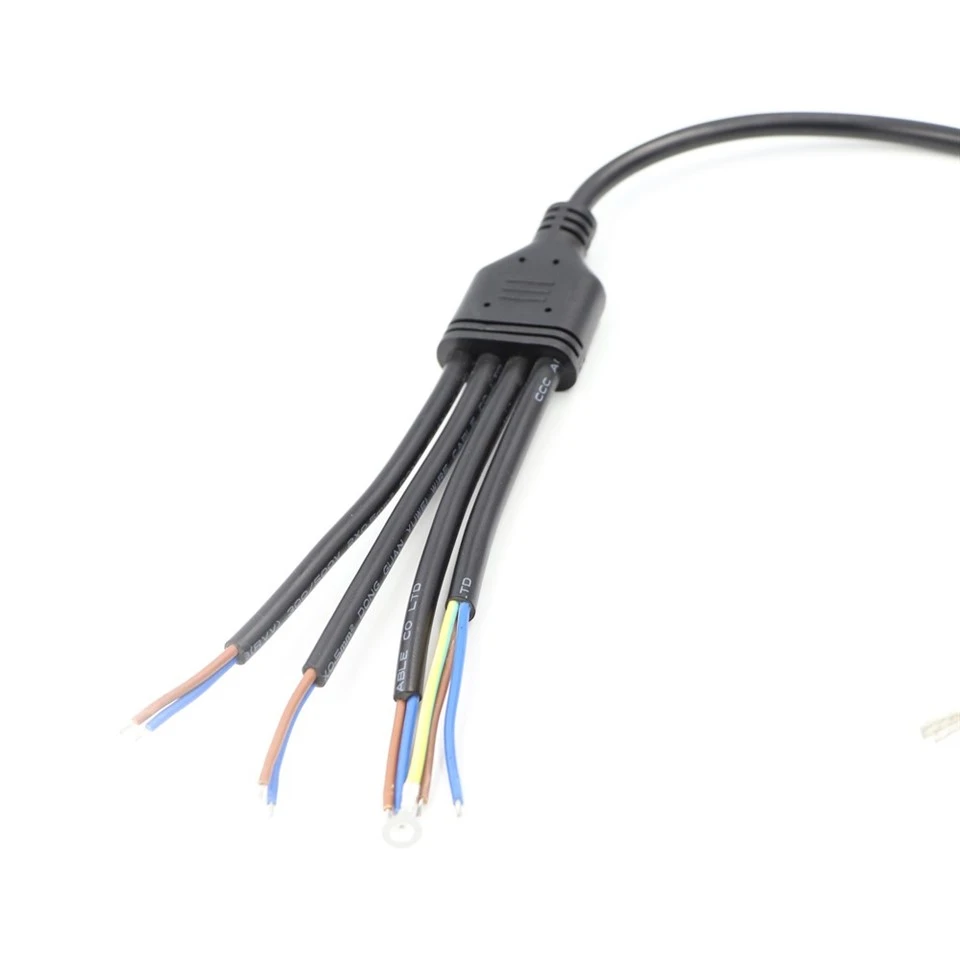

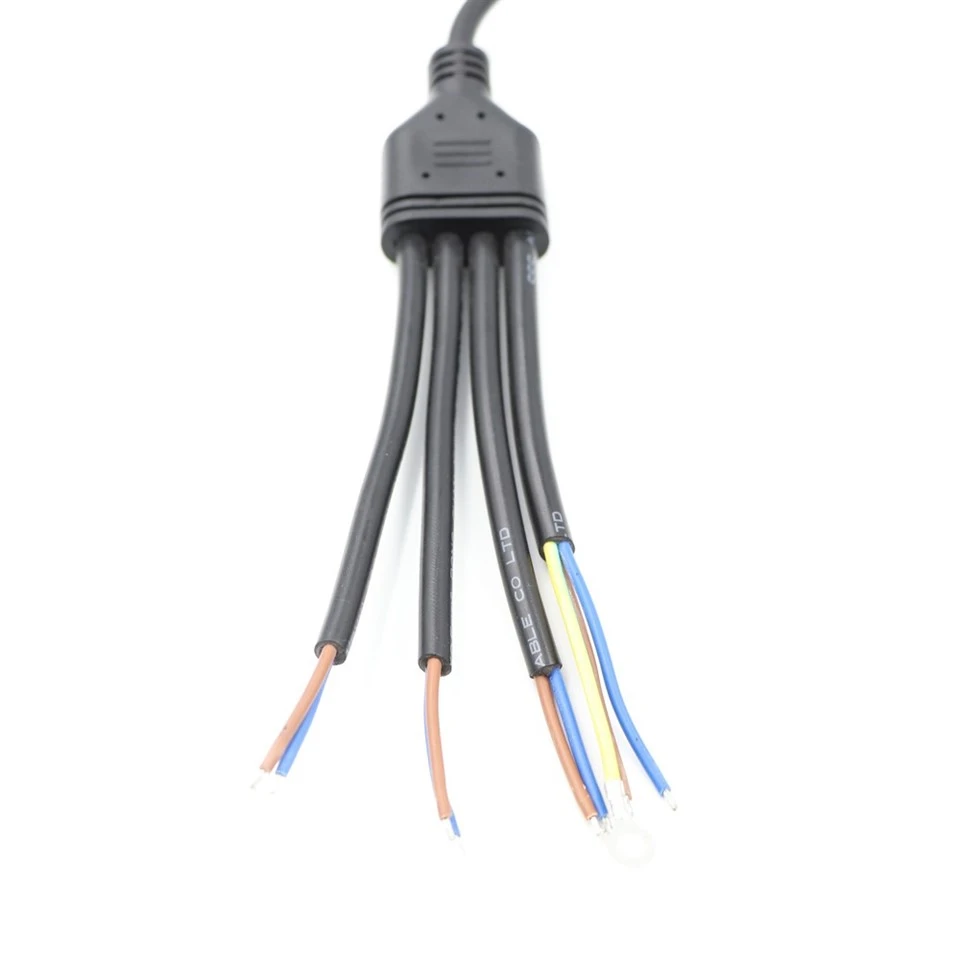

It adopts an integrated injection molded black Y-shaped housing. This flexible cable assembly features a single input cable that diverges into four separate output branch wires. The cable ends are stripped open with exposed multi-core wires; partial branch wires can be customized with ring terminals. PVC insulated black cable provides excellent flexibility and durability. This splitter cable assembly is widely used for power distribution in LED landscape lights, outdoor lighting, and intelligent equipment.
