M12 1 To 2-6 Port T-Type Flat Signal Cable Waterproof Assembly IP67

Dongguan Hejiaxin Technology Co., Ltd. is one of the leading manufacturers and suppliers of m12 1 to 2-6 port t-type flat signal cable waterproof assembly ip67 in China. Please feel free to wholesale durable products made in China here and get pricelist from our factory. All customized products are with high quality and competitive price.

This CAD drawing shows the overall outline and key dimensional data of the T-shaped waterproof splitter connector. The total horizontal length is 69mm, vertical overall height 40.5mm. It includes reinforced strain relief sections on three cable outlets for anti-pull protection. All dimensions follow ISO 2768‑m tolerance standards. Customized shell size and wire inlet opening can be supported. Complete engineering drawing files can be provided for customer verification before mass production.

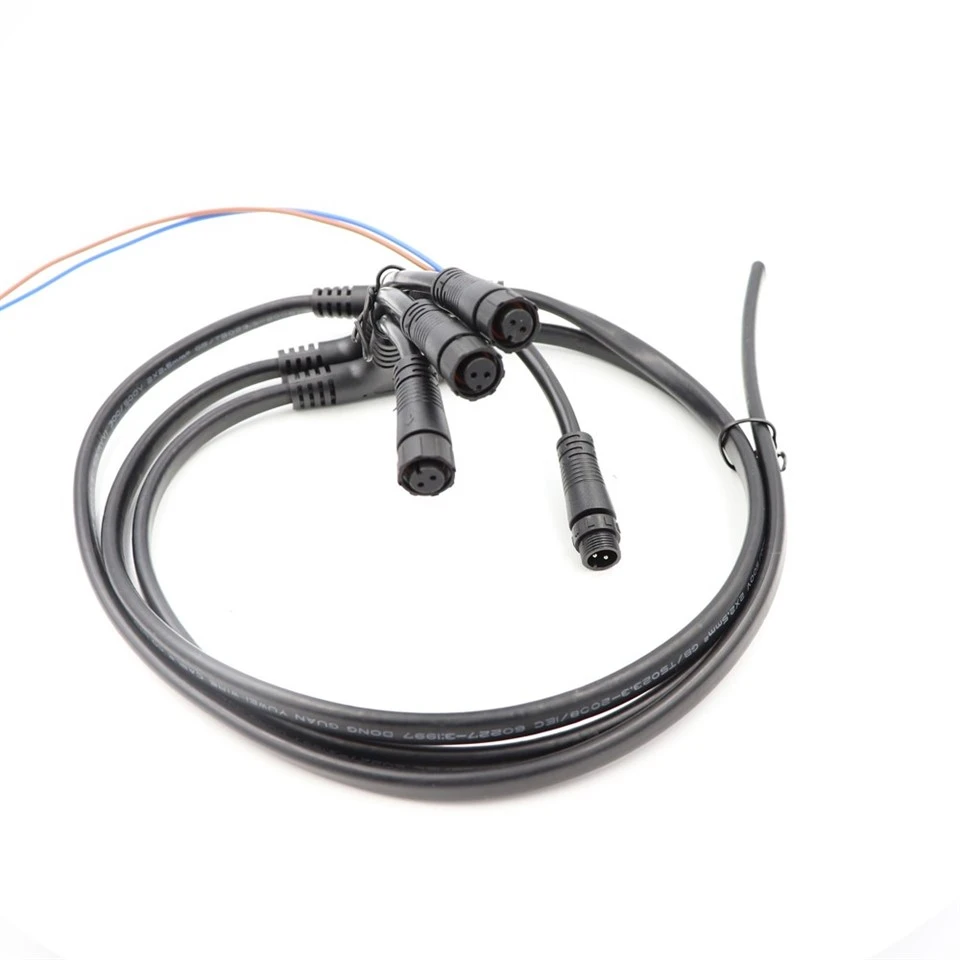

Coiled T-Type Waterproof Cable Harness Overview

This photo shows neatly coiled T-type waterproof splitter cable assemblies. Multiple integrated injection-molded T-junction connectors are pre-assembled with extension cables, terminated with standard circular male and female waterproof plugs. The cable outer jacket is printed with complete wire specification markings. Reinforced strain relief structures are fitted at each cable outlet to resist tension and bending damage. This image helps verify the overall wiring layout for series connection design of outdoor LED lighting systems.

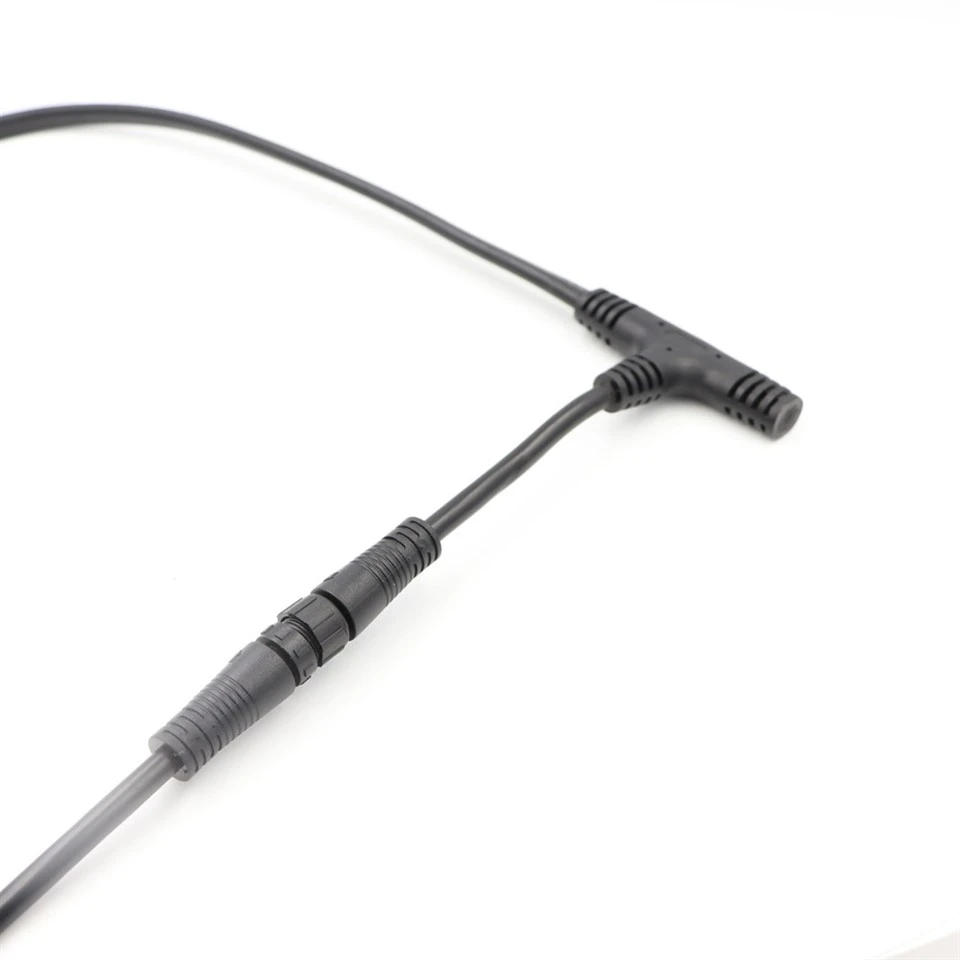

T Connector and Straight Plug Mating View

This side shot displays the connection assembly of T-shaped waterproof splitter and circular male-female waterproof plug. Corrugated reinforced strain relief is designed at both cable ends to avoid wire fracture under frequent bending. This image provides intuitive assembly reference for field wiring installation.
