M16 5 Pin Threaded Waterproof Connector IP67

The 5‑pin M16 is a multi‑circuit workhorse for automation, LED systems, and outdoor controls – 4A/110V per pin, which covers a lot of sensor and signal distribution scenarios. M16×1.0 thread keeps it locked down on robotic arms, conveyor sensor networks, and distributed lighting strings. Electricals are consistent with the series: ≤10mΩ contact resistance, ≥500MΩ insulation at DC 500V, 1.5kV dielectric, 1,500‑cycle rated. IP67 seal, nickel‑plated brass contacts, PVC jacket – good for -20°C to +85°C. Max cable 8.0mm OD. Parallel circuit for daisy‑chain wiring. OEM/ODM options open. The real advantage? You get five independent circuits in the same M16 shell that usually holds fewer – so you can reduce connector count on complex control systems.

Send Inquiry

Add To Inquiry

Dongguan Hejiaxin Technology Co., Ltd. is one of the leading manufacturers and suppliers of m16 5 pin threaded waterproof connector ip67 in China. Please feel free to wholesale durable products made in China here and get pricelist from our factory. All customized products are with high quality and competitive price.

Technical Specifications

Parameter	Specification
Voltage Rating	AC250V
Current R ating	≤6A
Times of plug	1500
Max Cable OD	≤8.0mm
Circuit Structure	Parallel
Contact Resistance	10mΩ
InsulationStructure	500MΩatDC500V
Voltage endurance at room temperature	1.5KV
TemperatureRating	-20℃~+85℃
Waterproof Level	IP67

Material Specifications

Parameter	Specification
wire Material	PVC, Rubber
Jack Material	PVC
Pin Material	Nickle-plated brass
Sealing ring	Rubber

Product Engineering Drawing

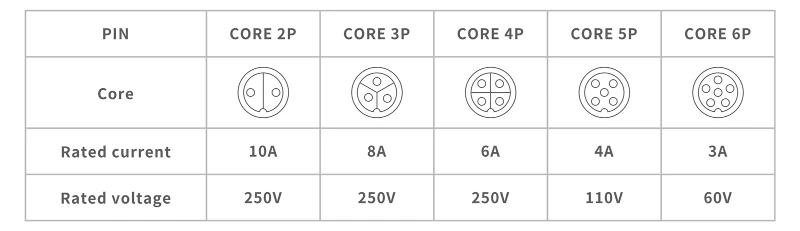

Core Configuration Diagram

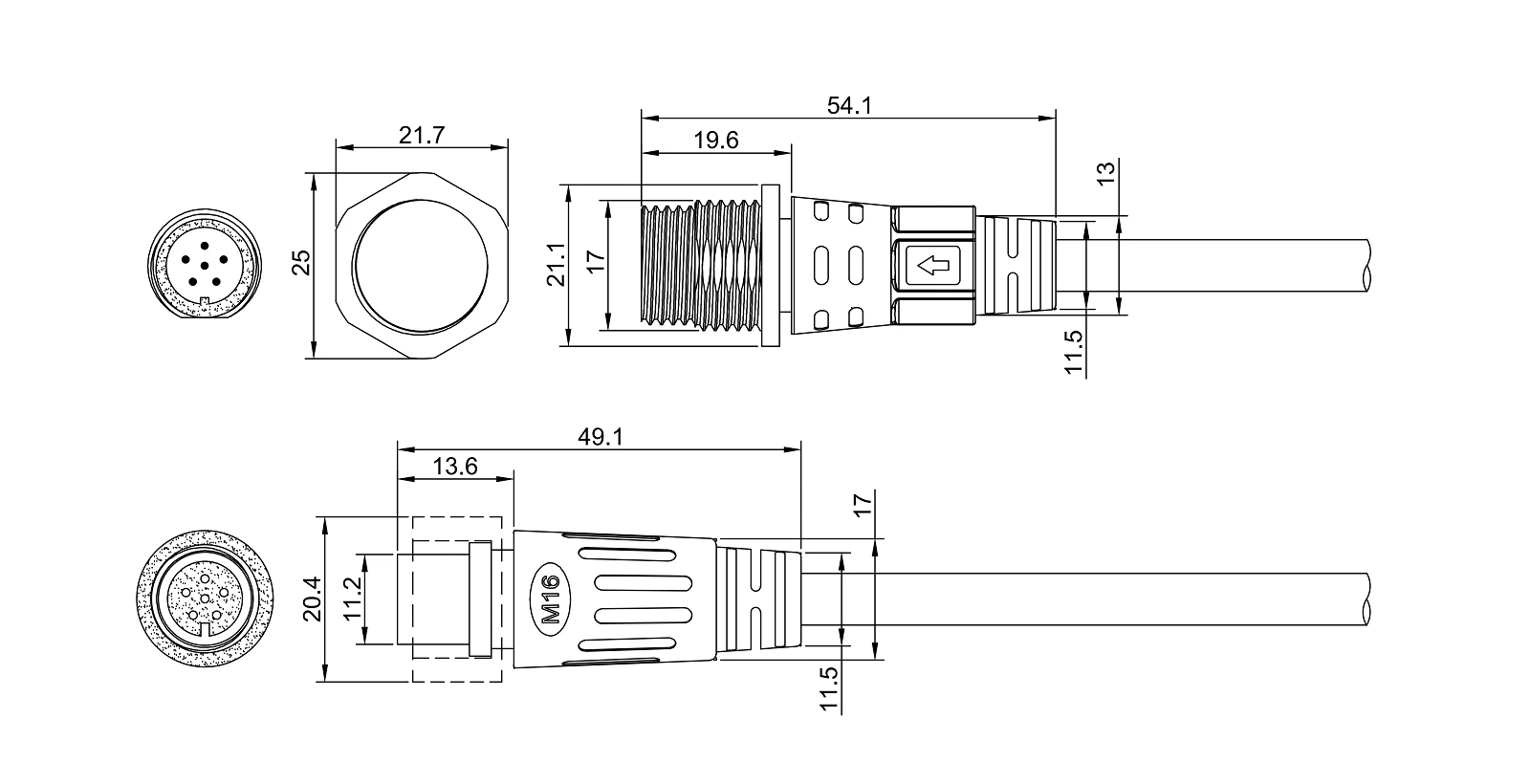

Dimensional Drawing

Drawing specs: male plug 49.1mm overall, mating thread 13.6mm, coupling nut 20.4mm AF. Female receptacle 54.1mm overall, thread depth 21.7mm, mounting nut 21.1mm AF. M16×1.0. 5‑pin is rated 4A/110V – other variants: 2‑pin 10A/250V, 3‑pin 8A/250V, 4‑pin 6A/250V, 6‑pin 3A/60V. ISO 2768‑m. CAD files available in PDF or DWG. We can also alter thread forms, housing length, or contact layout if your application calls for something outside the standard drawing.

Product detail

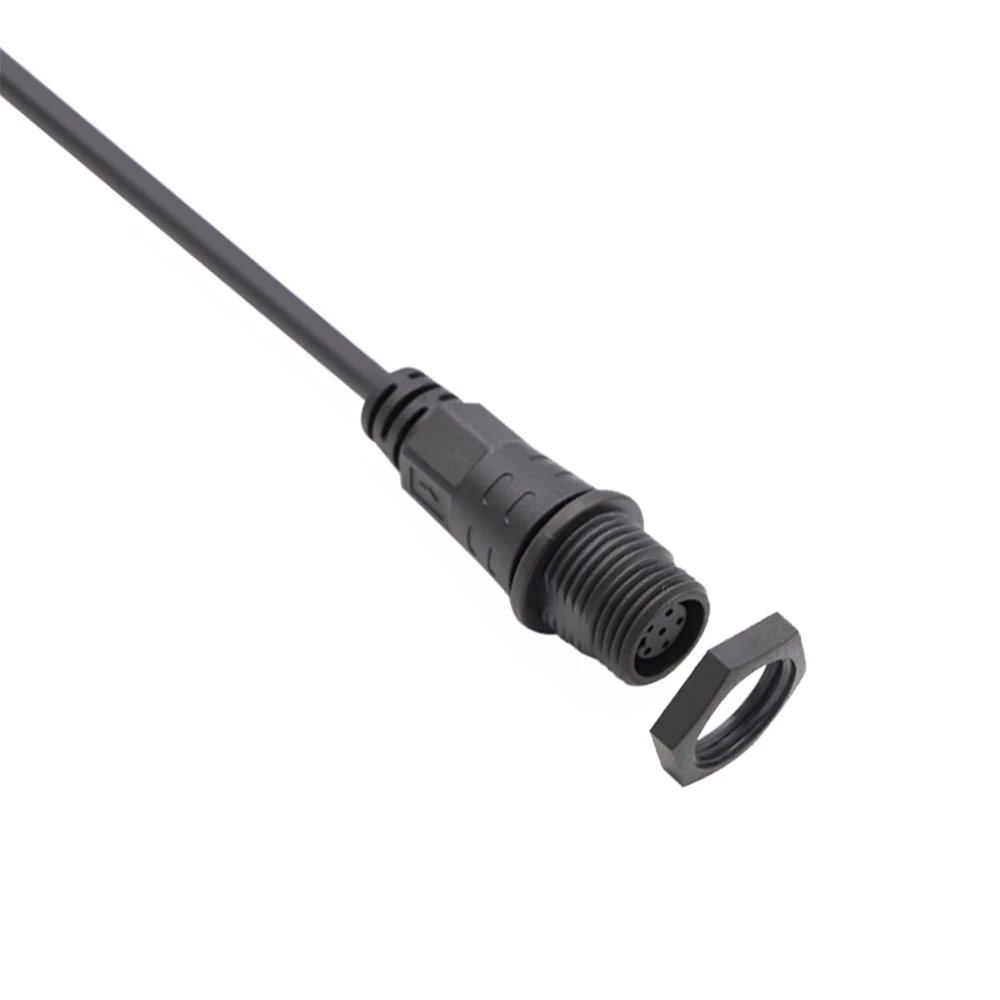

Female Receptacle 6‑Pin with Circular Connector Ring

This photo shows the female receptacle of the 6‑pin variant (for illustration purposes) with its circular connector ring attached. The six socket contacts and black PVC housing are clearly visible, along with the M16×1.0 internal thread. The circular ring provides additional mechanical support and alignment during mating.

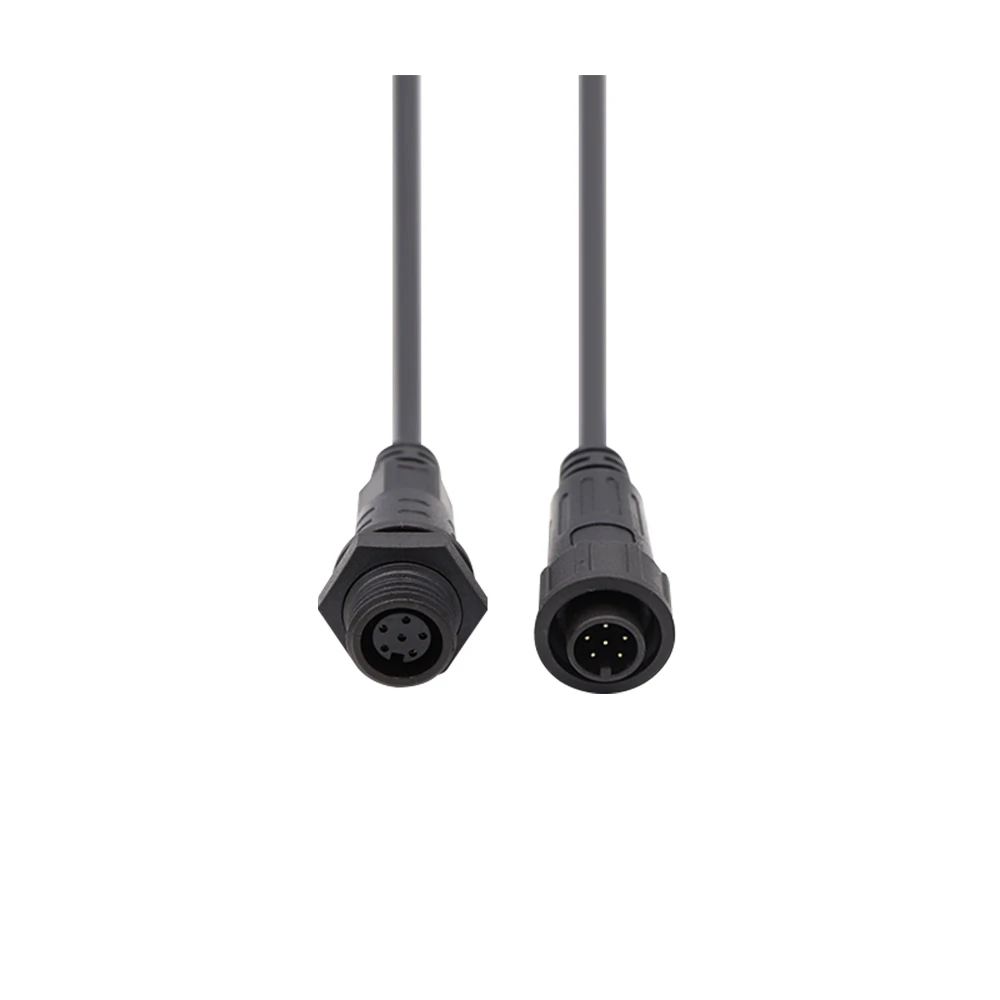

Male and Female Front View (6‑Pin Version, Black PVC)

This front‑view photo shows the male plug and female receptacle of the 6‑pin variant (for illustration purposes) side‑by‑side. Both feature six nickel‑plated brass contacts arranged in the standard M16 circular pattern, with black PVC housings. This image helps verify pin/socket alignment and orientation before assembly.
